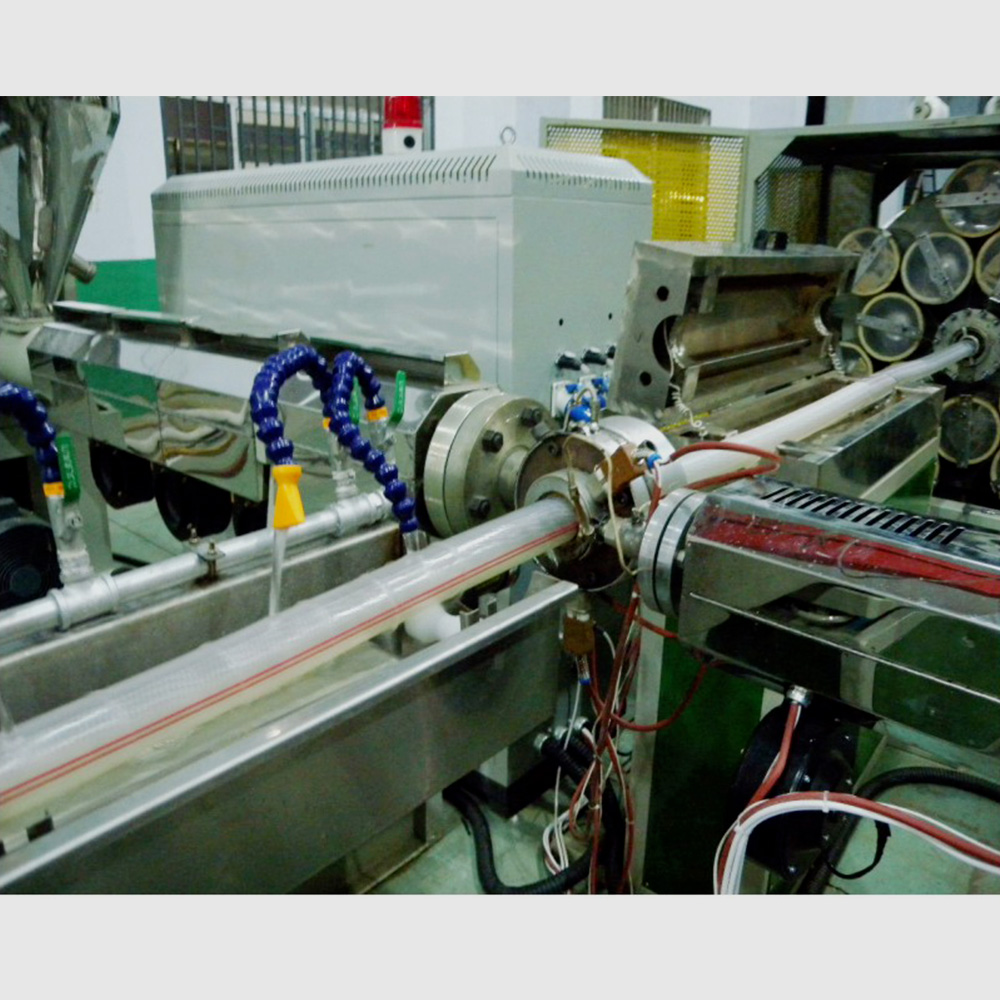

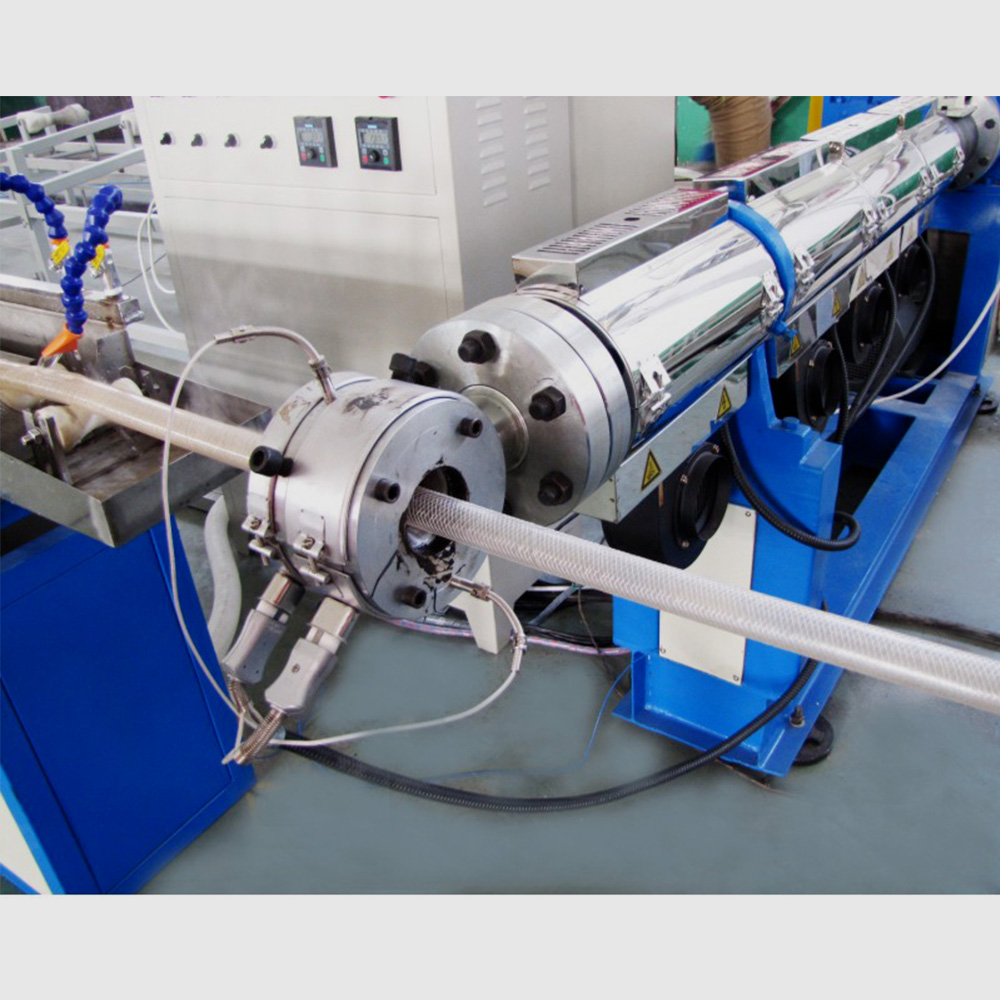

PVC Fiber Reinforced Pipe Extrusion Line
The line is suitable for the production of PVC fibre reinforced pipe. This kind of pipe is made of three layers structure. The inner and the outer layers will be made of PVC plastics and the middle layer is made of terylene fibre reinforced net. The pipe is suitable for the conveying of corrosive gas or liquid.It can be widely used in the fields of machinery,coal mine,oil,chemical plant, agricultural irrigation,building,solar water heater,coal gas pot,etc.
After changing some parts or add some equipments, the line is suitable for the production of PVC screw thread colored pipe(shower pipe)with PET film inside. It has beautiful appearance and is used in solar water heater and so on.
| Main Technical Parameters: | ||||
| Model | Extruder | Range of Pipe Diameter | Output(approx) | installed Capacity |
|---|---|---|---|---|
| BXWZQG-25 | BSJ45/25 | Ø6-25mm | 35-65kg/h | 39kw(approx) |
| BXWZQG-38 | BSJ65/25 | Ø8-38mm | 35-80kg/h | 68kw(approx) |
| BXWZQG-20 | BSJ45/25*2,BSJ30/25 | Ø8-20mm | 30-50kg/h | 30kw(approx) |
